China Turbidity Sensor for Water Clarity Measurement - Reliable Suppliers and Factory Certified Solutions
Product Features

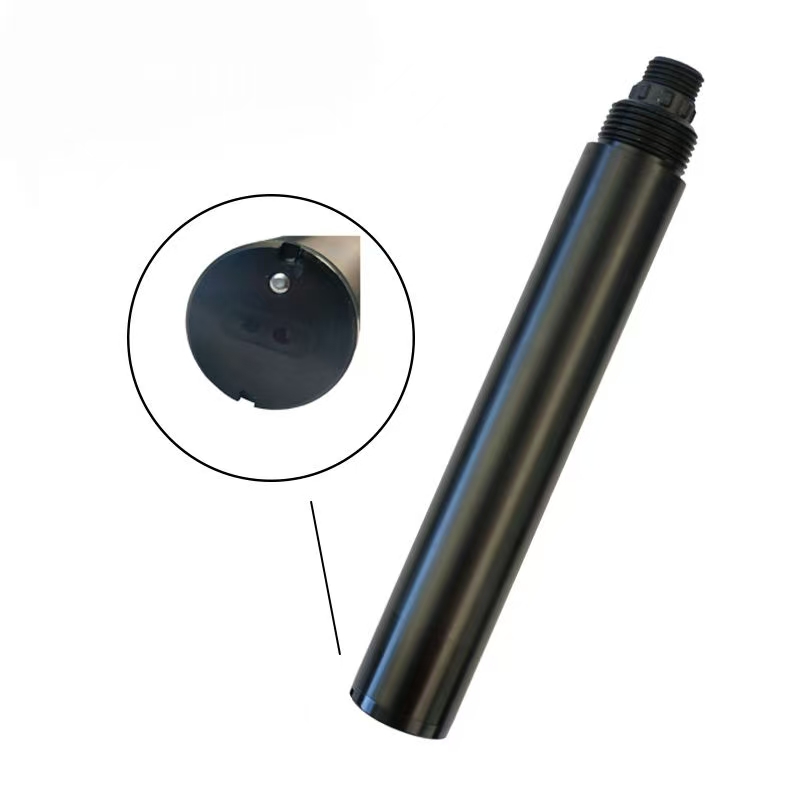

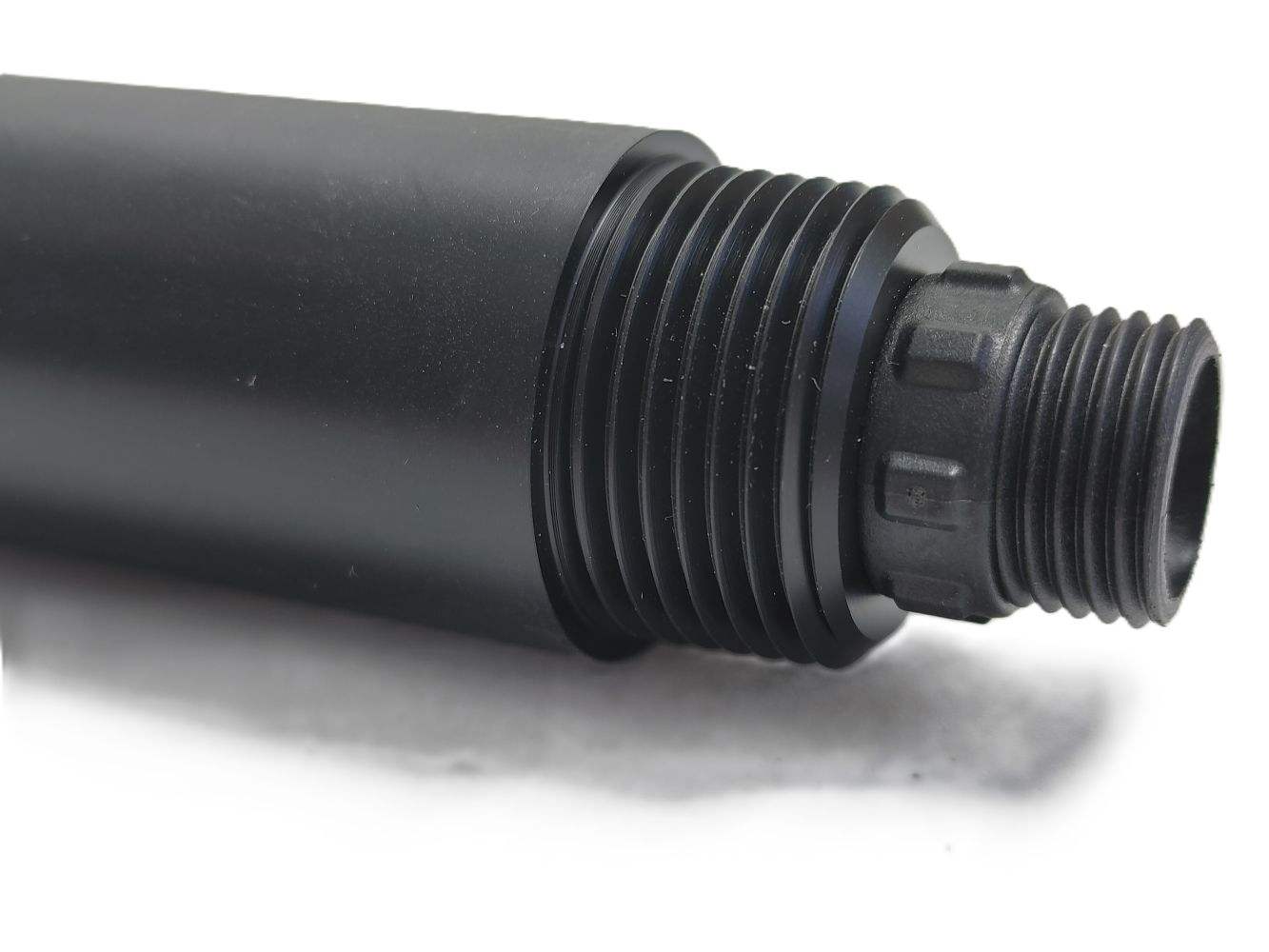

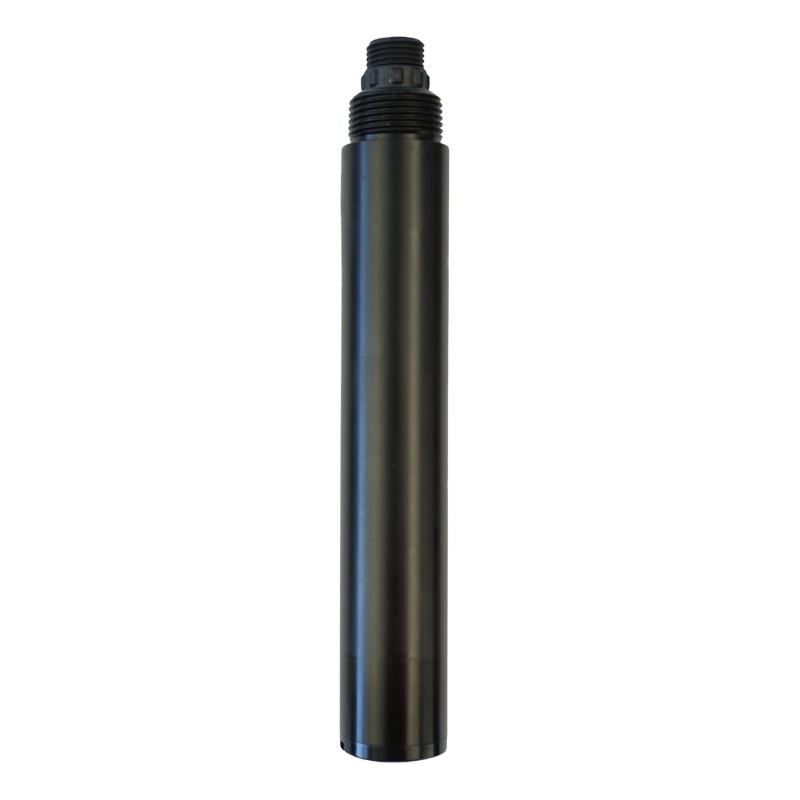

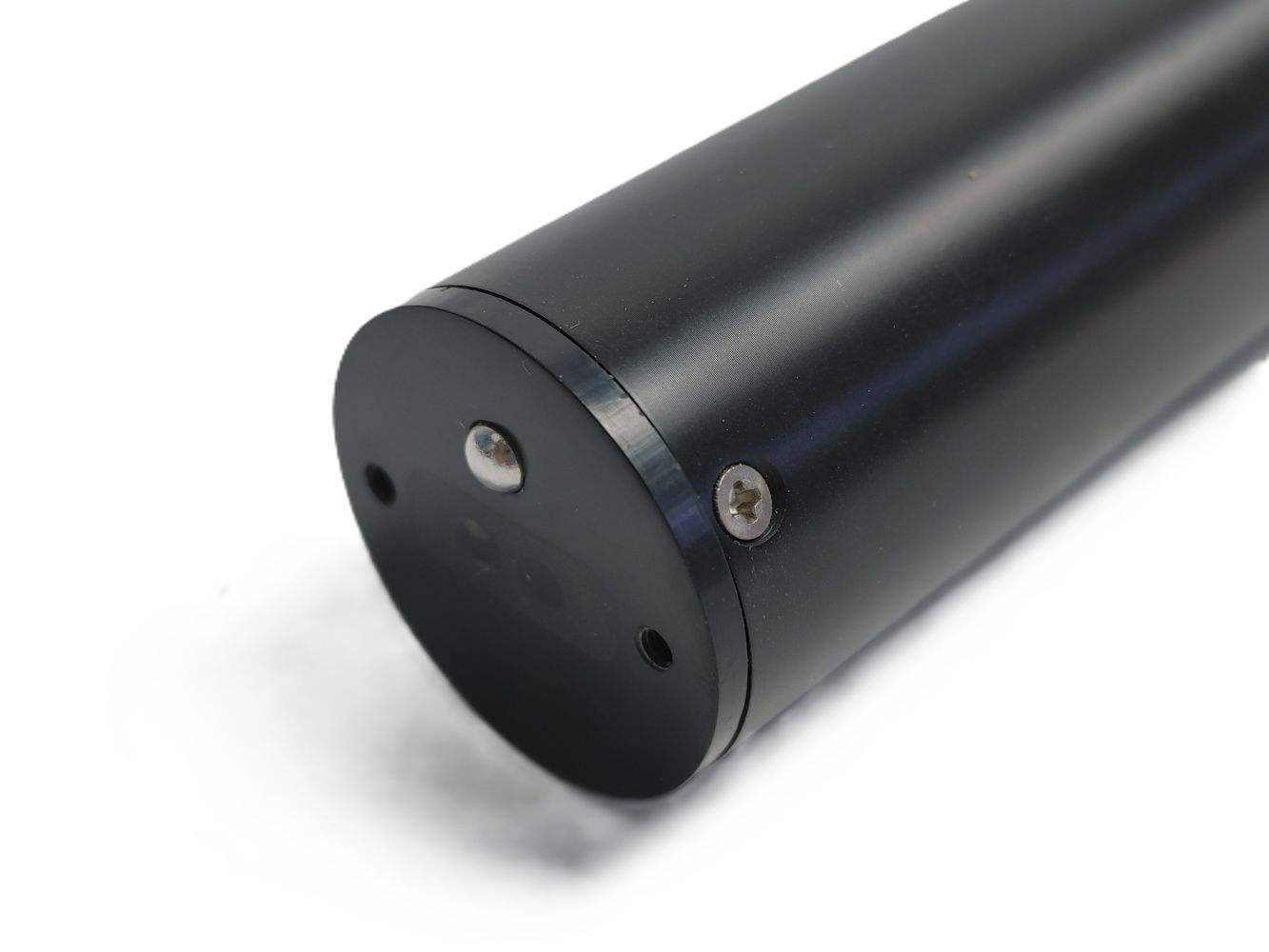

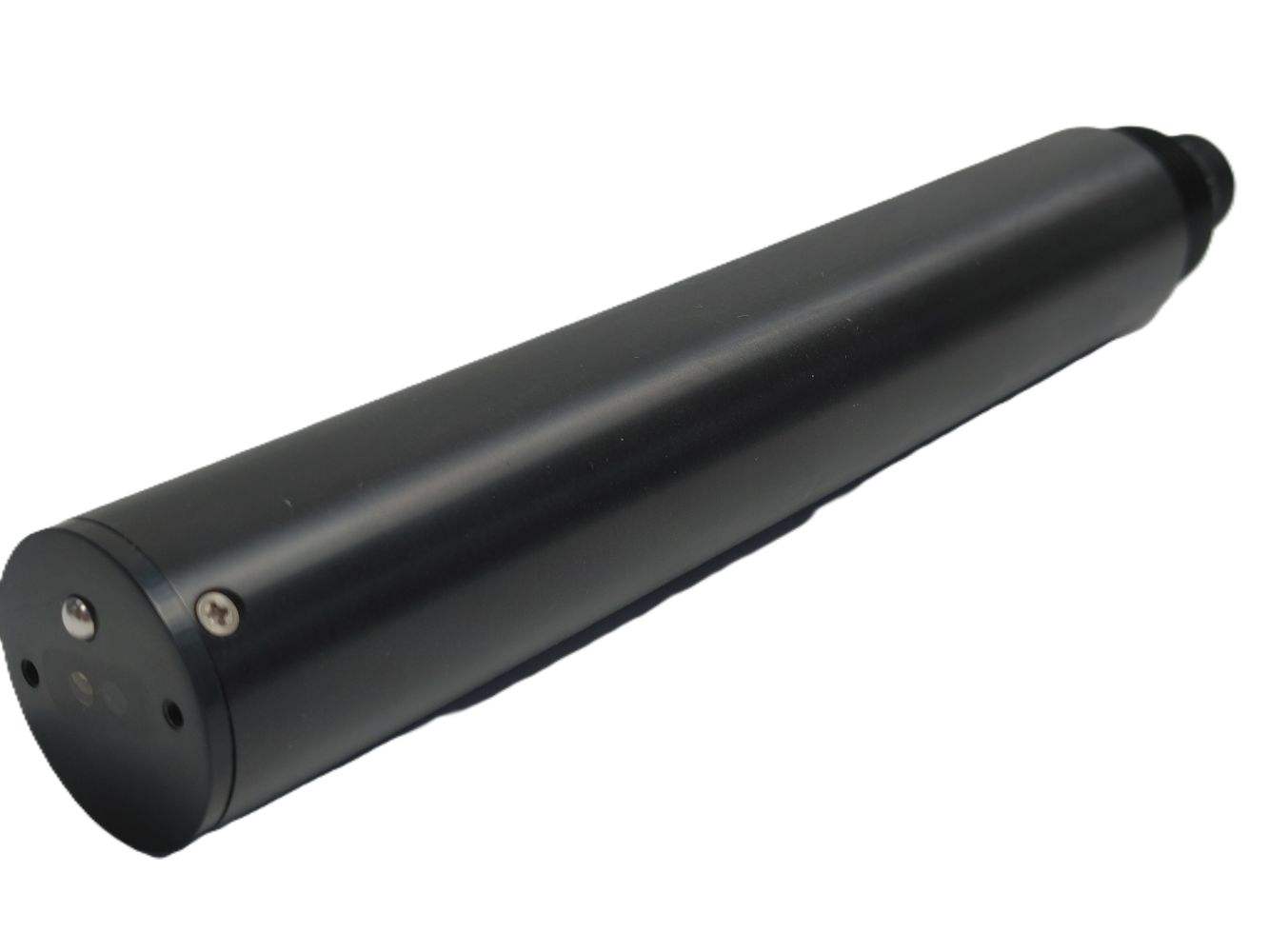

Titanium alloy corrosion-resistant shell with an NPT upper thread interface for easy installation, enhancing the durability of this industrial turbidity sensor in tough working conditions.
Built-in self-cleaning function (program-controlled) to effectively prevent debris settlement, fully reflecting the low-maintenance advantage of the self-cleaning turbidity sensor.
Adopts digital modulation filter technology to eliminate ambient light interference, ensuring the detection accuracy of the transmission method turbidity monitor.
Equipped with a long-life LED light source and built-in optical attenuation compensation, extending the service life of the water turbidity detector.
Supports calibration record storage and plug-and-play use (no initial calibration); RS485 connectivity meets integration needs of the RS485 Modbus turbidity detector with industrial control systems.
Product Parameters
| Model No. | TY-Turb |
| Principle of measurement | Transmission method |
| Measurement range | 0~4000NTU |
| Accuracy | ＜5% |
| Resolution | 0.01NTU |
| Response time | ＜45S |
| Waterproof grade | IP68 |
| Dimensions (Width x Height x Depth) | D34mm, L205mm, cable 3m (customizable) |
| Communication interface | RS485, the standard Modbus protocol |
| Working Temperature | 0~60 ℃ |
| Working voltage | 12~24VDC |
Application Scenario
-
Surface water -
Sewage treatment works -
Wastewater monitoring -
Aquaculture water
Frequently Asked Questions (FAQ)
Q1. What is the measurement principle of the TY-Turb turbidity sensor?
The TY-Turb sensor utilizes the transmission method to measure turbidity, featuring digital modulation filter technology that effectively eliminates ambient light interference for precise detection.
Q2. Does the self-cleaning turbidity sensor require frequent manual cleaning?
No, the sensor is equipped with a built-in, program-controlled self-cleaning function. This mechanism effectively prevents debris settlement, making it a highly reliable, low-maintenance option.
Q3. How durable is the sensor in corrosive or harsh industrial environments?
The sensor is designed with a titanium alloy corrosion-resistant shell and features an IP68 waterproof rating, ensuring long-term durability and performance in challenging industrial water conditions.
Q4. Does the RS485 Modbus turbidity detector support direct system integration?
Yes, it supports an RS485 communication interface using the standard Modbus protocol, facilitating seamless integration with industrial control systems and PLCs.
Q5. Is initial calibration required before using the water turbidity detector?
No initial calibration is needed. The device features plug-and-play functionality and supports calibration record storage for immediate deployment.
Q6. What is the measurement range and accuracy of the TY-Turb model?
The TY-Turb offers a wide measurement range of 0 to 4000 NTU, with a resolution of 0.01 NTU and high accuracy of less than 5%.
