Complete Guide to Pump-Suction Mini Air Monitoring Stations: Full Breakdown of Core Functions

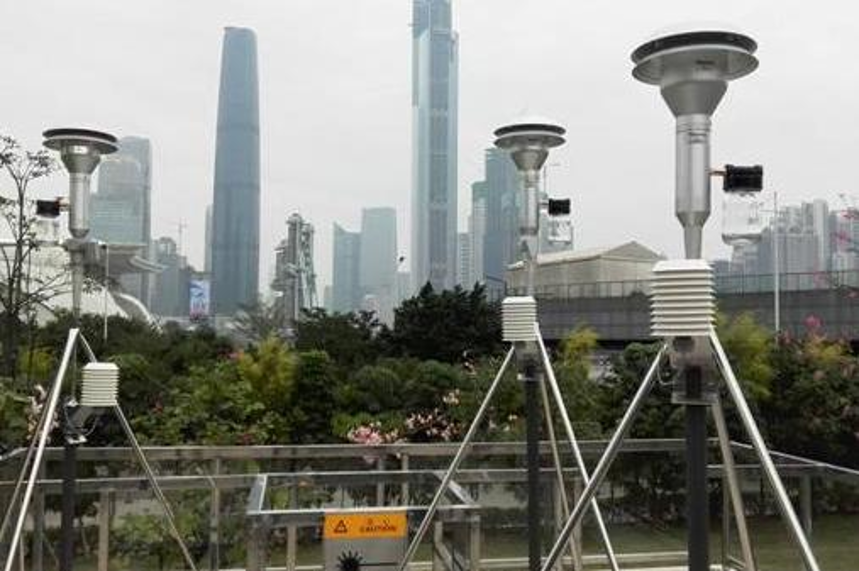

1. Core Positioning & Working Mechanism of the Equipment
The pump-suction mini air monitoring station is an intelligent device engineered for small-scale, high-frequency air quality detection. Its key distinction from passive diffusion monitors lies in its built-in micro air pump: it actively draws ambient air and delivers a steady airflow to internal sensor modules to precisely capture pollutant concentrations. This active sampling method drastically boosts response speed and data stability, ensuring credible readings even in low-wind environments with poor air circulation.
Its overall workflow forms a complete closed loop of "Sampling → Detection → Data Processing → Transmission → Application":
- 1 The micro pump actively extracts ambient air, which undergoes pre-filtering before entering the core sensing modules;
- 2 Sensors convert pollutant concentrations into electrical signals, calibrated by intelligent algorithms to generate standard monitoring data;
- 3 The communication module uploads data to cloud platforms in real time, delivering instant insights to environmental regulators and enterprises for air quality control decisions.
This closed-loop system enables continuous unattended monitoring under complex outdoor conditions, making it an indispensable tool for grassroots environmental management.
2. Breakdown of Core Functions: Five Modules Deliver Precise Monitoring Performance
All basic functions of the pump-suction mini air station revolve around three core objectives: accurate measurement, stable long-term operation and efficient equipment management. Each module plays an irreplaceable role to guarantee consistent monitoring performance, and it serves as a powerful PM2.5/PM10/TSP On-line Monitor for comprehensive outdoor air analysis.
(1) Active Sampling Function: The Power Core of Accurate Readings
Active sampling is the flagship advantage that separates this unit from passive diffusion monitors. The integrated micro air pump continuously and stably draws ambient air to form a controllable sampling airflow, ensuring full contact between target pollutants and sensor elements.
This feature delivers two major values:
- 1 Solves monitoring defects in low-airflow scenarios: Even in windless or breezy conditions, the pump actively pulls air samples, eliminating delayed or biased data common with passive devices caused by insufficient air exchange.
- 2 Ensures consistent sampling standards: Precisely regulated airflow maintains a fixed gas volume for every test, creating a unified benchmark for subsequent concentration calculations and guaranteeing data accuracy at the source.
Certain models automatically adjust sampling flow based on ambient humidity and temperature for superior environmental adaptability, ideal for long-term outdoor dust particulate monitoring.
(2) Multi-Parameter Detection Function: All-in-One Air Quality Inspector
The core value of this Multi-parameter Air Quality Monitor lies in its simultaneous detection of multiple key air quality indicators to deliver a full overview of ambient air conditions. Standard measurable pollutants include six core pollutants: PM2.5, PM10, sulfur dioxide (SO₂), nitrogen dioxide (NO₂), carbon monoxide (CO) and ozone (O₃).
Extended models add volatile organic compounds (VOCs), temperature, humidity, wind speed and wind direction to build a multi-dimensional monitoring system.
Multi-parameter detection relies on modular internal sensor units, with independent dedicated sensors for each index that operate in tandem:
- 3 5 and PM10 detection adopts laser light scattering technology: Laser beams irradiate airborne particles, and scattered light intensity is captured to calculate particulate mass concentrations;
- 4 Gaseous pollutant detection leverages electrochemical sensing: Chemical reactions between contaminants and sensor media generate electrical signals converted into standard concentration values.
This parallel multi-index testing design lets a single unit complete workloads that once required large fixed monitoring stations, greatly boosting monitoring efficiency and supporting full air quality assessment for localized zones.
(3) Intelligent Data Processing Function: Quality Gatekeeper for Valid Monitoring Data
The value of monitoring data hinges on authenticity and reliability, and the intelligent data processing module acts as the critical safeguard for data integrity. Instead of simply collecting raw electrical signals, embedded algorithms conduct full-process calibration and optimization:
- 1 Raw signal filtering to remove invalid noise generated by environmental interference and internal equipment fluctuations;
- 2 Built-in temperature and humidity compensation algorithms offset measurement deviations—electrochemical sensors are highly sensitive to temperature and humidity shifts, which the system automatically corrects;
- 3 Scheduled auto-calibration via internal standard calibration sources to eliminate drift caused by sensor aging;
- 4 Abnormal data identification: Readings outside reasonable thresholds are automatically flagged and filtered out, ensuring only valid data is uploaded to cloud platforms to support sound environmental governance decisions.
(4) Real-Time Data Transmission Function: Link Between Monitoring and Regulation
Real-time data transmission forms the backbone of dynamic environmental supervision, breaking geographical barriers between field equipment and management terminals to deliver instant monitoring insights. The device integrates multiple communication modules for flexible configuration based on site requirements: wireless options including 4G, 5G and NB-IoT, plus wired connections such as RS485 and Ethernet, compatible with all network environments.
Data is packaged per universal industry protocols for seamless integration with official environmental air quality platforms and enterprise environmental management systems. The unit supports minute-level or even second-level data uploads. Managers can view real-time readings and historical trend curves via PC or mobile terminals, with instant system alerts triggered once pollutant thresholds are exceeded to enable rapid intervention. This real-time capability transforms air quality management from post-event tracing to proactive live control, drastically improving regulatory response efficiency.
(5) Operation & Maintenance Management Function: Safety Net for Long-Term Stable Operation
Most pump-suction mini air stations are deployed outdoors for unattended operation, so robust O&M functions are essential to sustain reliable long-term performance while cutting maintenance costs and boosting servicing efficiency.
The equipment continuously monitors its own operational status, including pump current, sensor response signals, battery power and communication connectivity. Any abnormality—such as elevated current from blocked sampling pumps, sensor failure or low battery—triggers automatic fault alerts on the cloud platform, clearly labeling fault type and location for rapid troubleshooting by technicians.
Additional practical O&M features:
- 5 Local data storage: Historical readings are stored on-device; data will be automatically re-transmitted once network connectivity resumes, eliminating data loss during outages;
- 6 Remote parameter configuration & firmware upgrades: Technicians adjust settings and update system software remotely without on-site visits, simplifying maintenance workflows and keeping the unit running at optimal performance for consistent outdoor dust particulate monitoring.

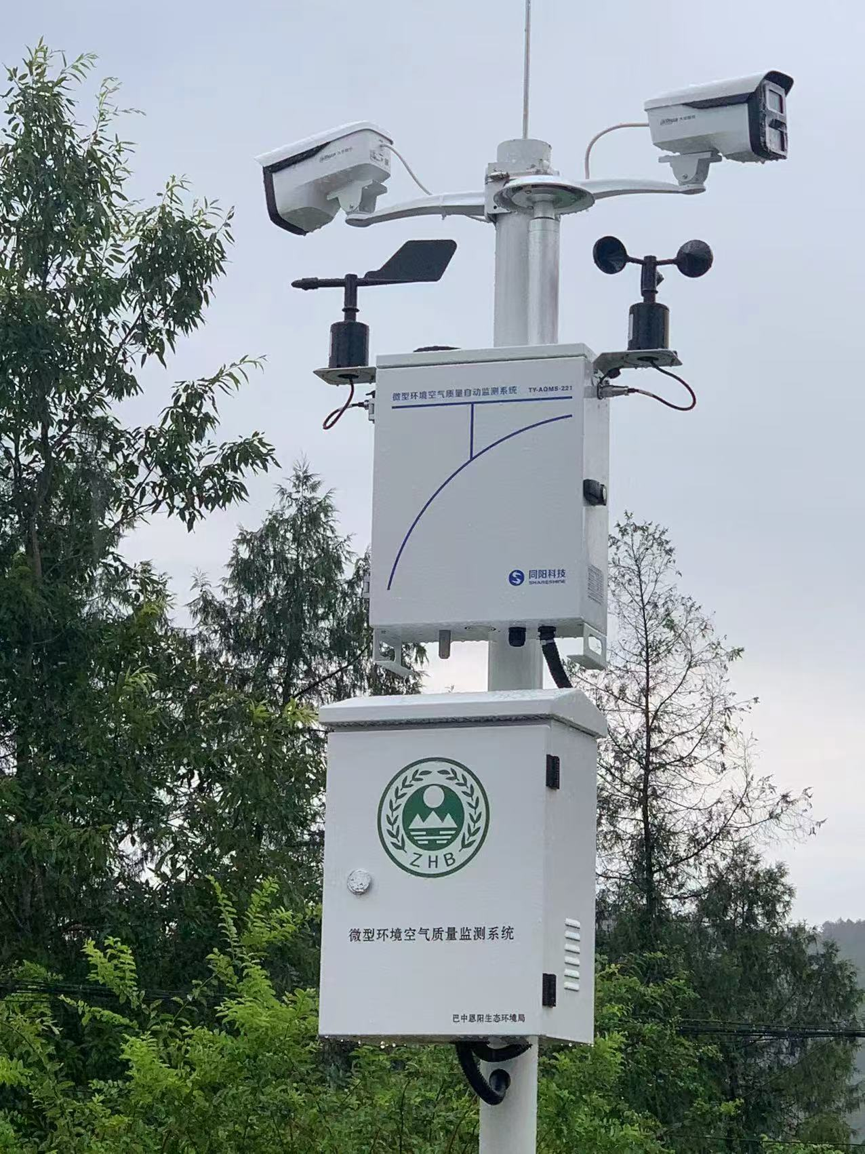

3. Practical Value Across Three Core Application Scenarios
Community & Street Scenarios
Install this Multi-parameter Air Quality Monitor in densely populated zones including residential compounds, schools and hospitals. Its multi-parameter detection tracks real-time air quality; once PM2.5/PM10 concentrations exceed limits, the real-time transmission system activates instant alerts. Community staff can immediately deploy dust suppression sprinkling, strengthen greenbelt maintenance and other mitigation measures to protect residents’ respiratory health.
Industrial Park Scenarios
Focused monitoring of characteristic pollutants such as SO₂, NO₂ and VOCs safeguards factory compliance. Intelligent data processing guarantees high-precision readings to help enterprises detect production-line pollutant leaks early. Comprehensive O&M features minimize monitoring downtime caused by equipment faults, supporting compliant eco-friendly manufacturing and mitigating environmental pollution risks. As a stable PM2.5/PM10/TSP On-line Monitor, it tracks industrial dust emissions round the clock for factory environmental audits.
Transportation Hub Scenarios
Deploy units at road intersections, bus stations and transport terminals to measure vehicle exhaust pollutants. Real-time data upload delivers clear patterns of traffic-related pollution distribution for environmental authorities, providing data support for optimized traffic flow management and new energy vehicle promotion to curb transportation-sourced air pollution.

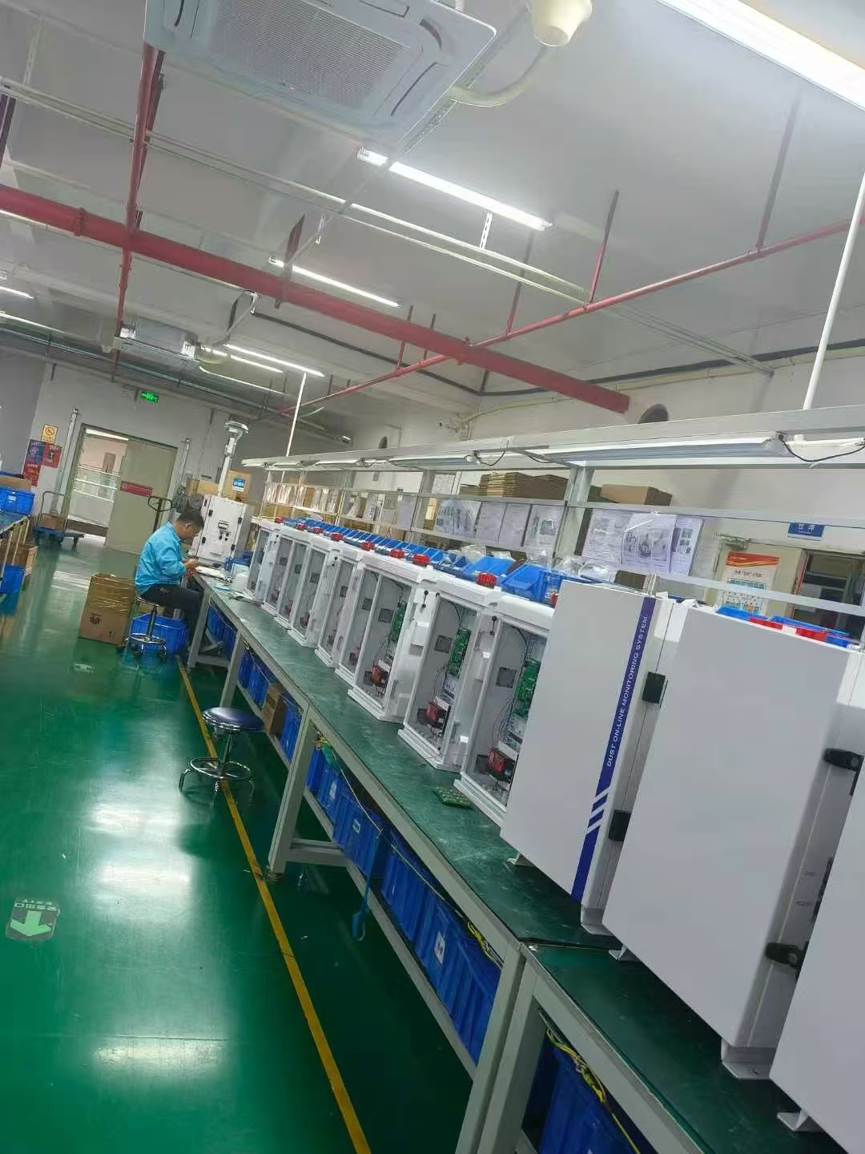

4. Conclusion
Equipped with five core capabilities—active sampling, multi-parameter detection, intelligent data processing, instant wireless transmission and simplified remote maintenance—the pump-suction mini air monitoring station builds an efficient, accurate and stable air quality monitoring ecosystem that perfectly matches grassroots environmental supervision and refined urban governance needs.
This cost-effective, highly flexible Multi-parameter Air Quality Monitor not only covers blind spots left by bulky traditional fixed stations but also extends air quality detection to every micro-scale monitoring scene, delivering reliable outdoor dust particulate monitoring and acting as a robust PM2.5/PM10/TSP On-line Monitor.
With continuous technological upgrades, further improvements to detection precision, intelligent functionality and extended monitoring indexes will solidify its position as the agile workhorse of environmental monitoring equipment. It will provide stronger technical backing for clear blue skies and refined ecological environmental governance worldwide.
