Key Selection Guidelines for Conductivity Meters

Electrical conductivity is a core physical parameter reflecting the conductive capacity of aqueous solutions, widely deployed in Water quality monitoring, industrial pure‑water production, pharmaceutical GMP validation and many other sectors. Selecting a proper Conductivity meter is far more than simply comparing measuring ranges and prices. Instead, it represents a systematic decision covering measurement principles, working‑condition adaptability, communication integration and long‑term stability of the Water quality sensor.

1Define Your Core Application Scenario

Performance requirements vary dramatically across different operating environments:

• 1
  High‑precision laboratory analysis: Require basic error within 0.5% FS, automatic temperature compensation, and multi‑point calibration with standard solutions.
• 2

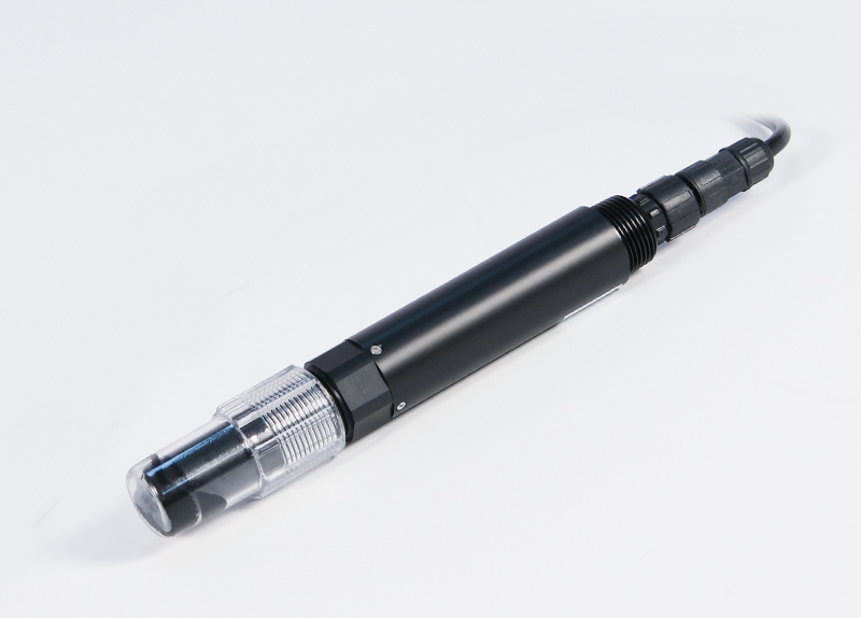

  Industrial online monitoring: Prioritize IP68 protection rating, corrosion‑resistant electrodes, and MODBUS RS485 digital communication for seamless integration of the Water quality sensor and Conductivity meter.
• 3

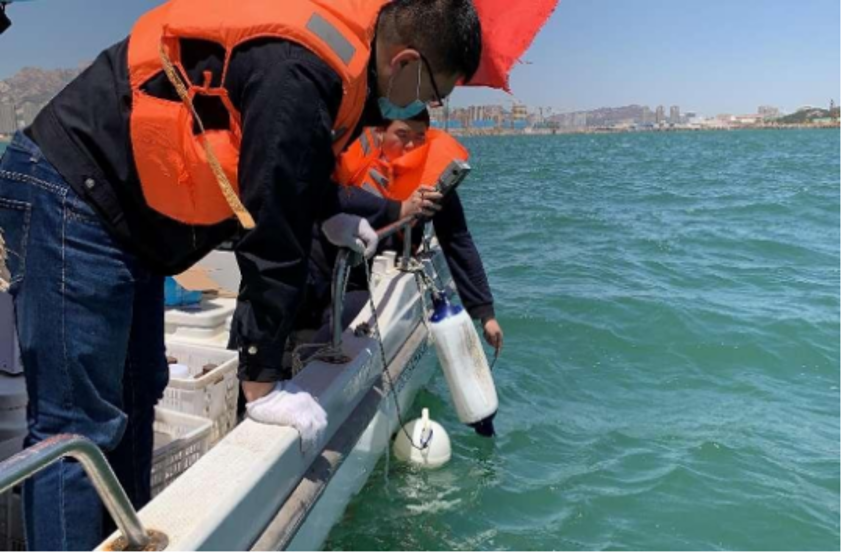

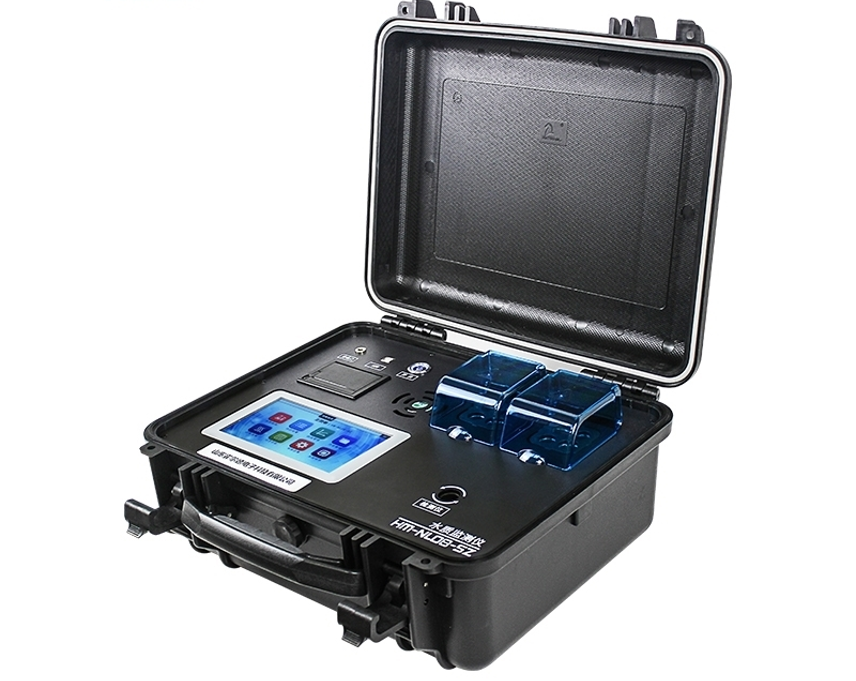

  Portable on‑site rapid testing: Focus on battery endurance, one‑touch automatic temperature compensation, and anti‑slip waterproof housing for field Water quality monitoring.

2Critical Technical Parameters

2.1 Measuring Range & Accuracy

Typical measuring ranges span from 0.01 μS/cm up to 2000 mS/cm. High‑performance instruments deliver linearity error ≤±0.5 % across the full measuring span.

2.2 Temperature Compensation

• 4
  Automatic compensation (NTC10K / Pt100): Highly recommended for most Water quality monitoring
• 5
  Linear compensation coefficient: Adjustment according to actual liquid medium is necessary.
• 6
  Dynamic correction: Applied for media with non‑linear temperature response characteristics.

2.3 Communication & Integration Capability

MODBUS RTU protocol via RS485 interface. Verify flexible configuration of baud rate and parity bits, as well as remote calibration functions for the Conductivity meter and matched Water quality sensor.

2.4 Reliability of Electrode Assembly

• 7
  Cell constant (K‑value): Must match the target measuring range.
• 8
  Electrode materials: Stainless steel, platinum black and titanium alloy each serve distinct application scenarios.
• 9
  Maintenance‑friendliness: Check whether cleaning can be performed without disassembly.

3Practical Selection Details

• 10
  Calibration flexibility: Multi‑point calibration outperforms single‑point calibration.
• 11
  Data stability: Combined operation of dynamic correction and linear compensation delivers better performance for your Water quality sensor.
• 12
  Environmental adaptability: Consider housing material, ingress‑protection grade and wide‑voltage power supply input.
• 13
  Software support: Confirm availability of supporting debugging tools and complete register documentation for the Conductivity meter.
