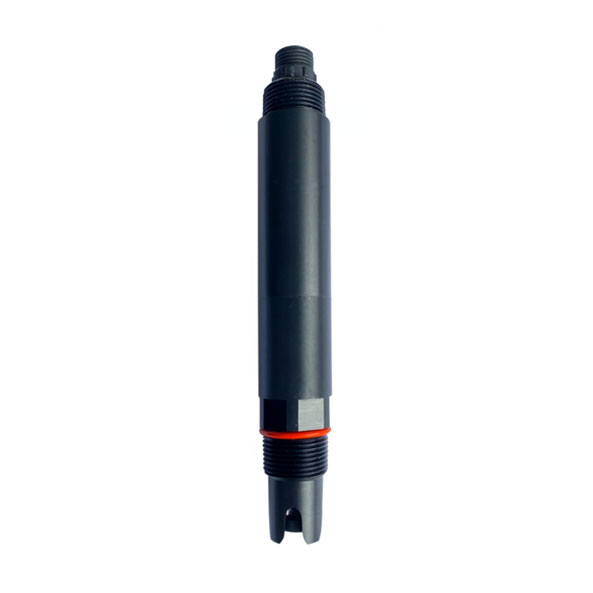

TY-FLU Digital Fluoride Ion Sensor
Product Features
Signal output: Equipped with RS-485 bus and Modbus/RTU protocol, it can easily connect to PLC, DCS, industrial control computers, and other third-party equipment, fully meeting the connectivity requirements of RS485 Modbus fluoride sensors.
Patented fluoride ion probe: Under a pressure of at least 100 kPa (1Bar), the internal reference liquid seeps very slowly from the microporous salt bridge. This stable system extends the electrode service life and improves the durability of solid-film fluoride ion sensors.
Easy installation: It is designed with 3/4NPT pipe threads, allowing for convenient sinking installation or installation in pipes and tanks, which simplifies the deployment of inline fluoride ion sensors.
IP68 Protection level: It has excellent waterproof performance, making this IP68 waterproof fluoride detector suitable for long-term use in humid or underwater environments such as sewage and aquaculture water.
Product Parameters
| Model No. | TY-FLU |
| Principle of measurement | Ion selection method |
| Measurement range | 0～100.00mg/L |
| Accuracy | ±10% or ±1mg/L，±0.5℃ |
| Resolution | 0.01mg/L |
| Waterproof grade | IP68 |
| Communication interface | RS485, the standard Modbus protocol |
| Working Temperature | 0～50℃，＜0.2MPa |
| Working voltage | 12~24VDC |
Application Scenario
-
Surface water -
Sewage treatment works -
Wastewater monitoring -
Aquaculture water
